CVPR 2024

EMMA

Equivariant Multi-Modality imAge Fusion

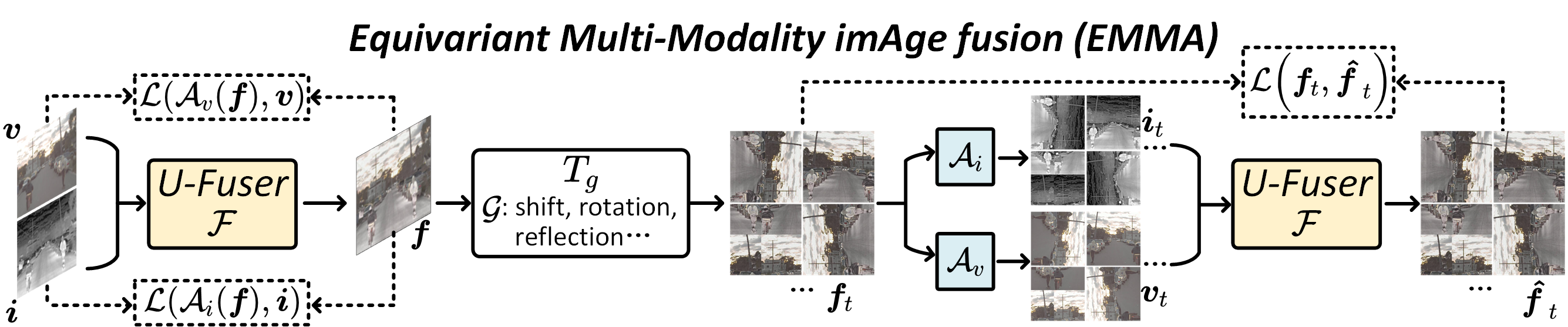

A self-supervised fusion paradigm that senses fused images back into source modalities and enforces the Equivariant Imaging prior.

Zixiang Zhao1,2, Haowen Bai1, Jiangshe Zhang1, Yulun Zhang3, Kai Zhang4, Shuang Xu5, Dongdong Chen6, Radu Timofte2,7, Luc Van Gool2,8
1Xi'an Jiaotong University 2ETH Zurich 3Shanghai Jiao Tong University 4Nanjing University 5Northwestern Polytechnical University 6Heriot-Watt University 7University of Wurzburg 8INSAIT
Paper arXiv Code Supp.

Core Idea

Fuse useful evidence by respecting how images are sensed.

Image fusion combines complementary observations into one informative image. Infrared images highlight thermal targets under poor illumination, visible images provide textures and scene details, and medical modalities reveal different anatomical or functional responses. EMMA turns this into a self-supervised training signal instead of requiring an unavailable fused-image label.

Low-light scenes thermal saliency plus visible texture
Medical analysis functional response plus anatomy
Recognition Friendly fusion images that help perception models
01

Motivation

No fused-image ground truth

Training cannot rely on paired source images and a perfect fused target.

Direct source losses are mismatched

Comparing a fused image directly with infrared or visible images ignores modality manifolds.

No real super sensor exists

A single sensor cannot observe every modality-specific cue simultaneously.

Generic priors should be domain-light

Fusion should not depend only on hand-crafted assumptions for one dataset or modality.

02

EMMA Contributions

Pseudo-sensing loss

Learn sensing modules that map fused images back to source-domain measurements.

Equivariant fusion loop

Transform fused images, pseudo-sense them, and require re-fusion to stay consistent.

U-Fuser architecture

Transformer-CNN blocks capture global dependencies and local texture details.

Unified IVF and MIF results

One paradigm supports infrared-visible fusion, medical fusion, detection, and segmentation.

Method

Self-supervised equivariant fusion pipeline

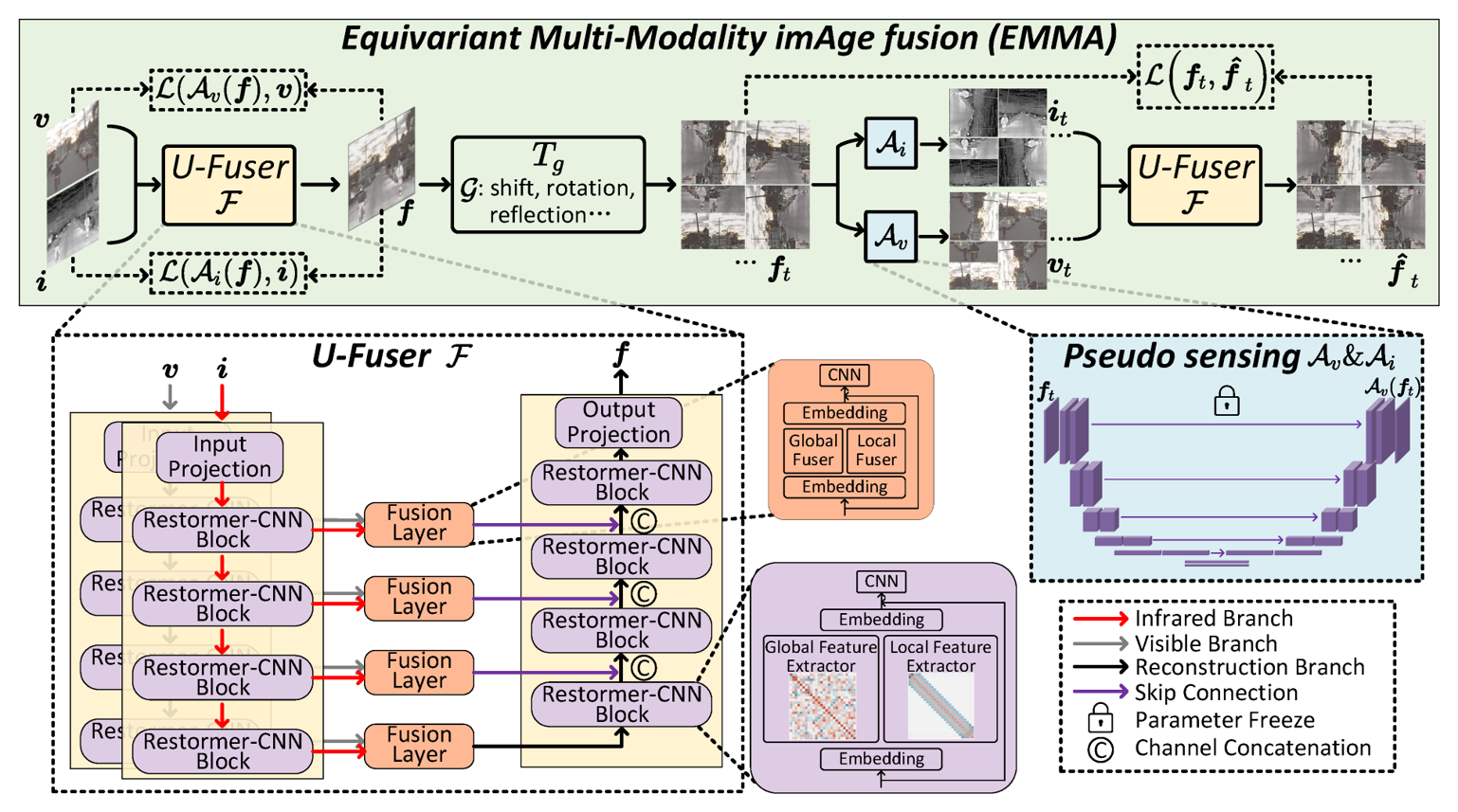

EMMA workflow with U-Fuser, pseudo-sensing modules, and equivariant training
EMMA uses source-domain pseudo-sensing and transformation consistency for training; at inference, only the U-Fuser branch is required.

Fuse

U-Fuser receives infrared and visible images and predicts the fused image with multi-scale global-local features.

Pseudo-Sense

Frozen sensing modules reconstruct modality-specific measurements from the fused image, making the loss live in source domains.

Enforce Equivariance

Shift, rotation, and reflection create virtual sensing responses; re-fusion must match the transformed fused image.

Architecture

U-Fuser carries the deployment path.

Transformer-CNN blocks

Global feature extraction and local texture modeling are combined inside each fusion scale.

Multi-scale fusion layers

Infrared and visible branches are fused across encoder and decoder paths with skip connections.

Frozen pseudo-sensors

Pseudo-sensing modules train the fusion model, then are discarded during testing.

Single-branch inference

The released model uses only U-Fuser to produce fusion images efficiently at test time.

Qualitative Results

Infrared-visible and medical fusion examples

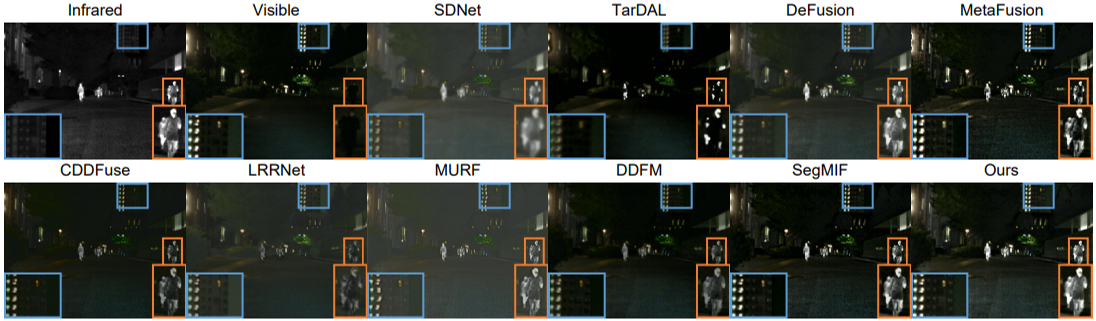

EMMA infrared-visible fusion comparison

comparison panel

RoadScene: Infrared-Visible Fusion

EMMA preserves thermal targets while keeping visible textures and natural scene structure.

Quantitative Results

Strong performance across Infrared-visible fusion and medical fusion.

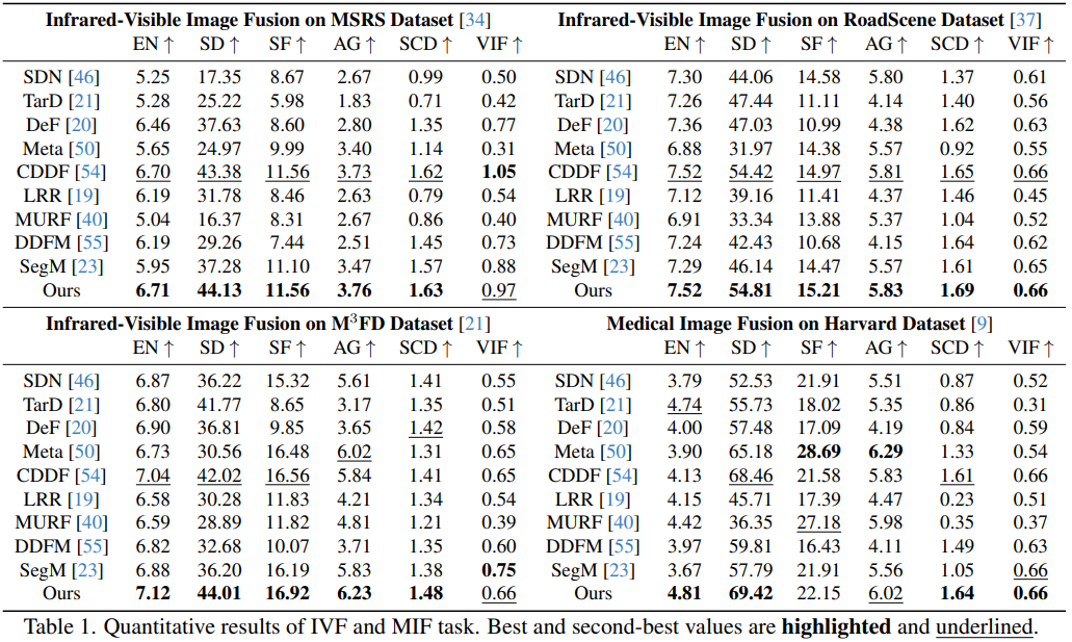

EMMA quantitative image fusion results on MSRS, RoadScene, M3FD, and Harvard datasets
Fusion metrics on MSRS, RoadScene, M3FD, and Harvard medical fusion benchmarks.

Downstream Recognition

Fusion images that help perception models

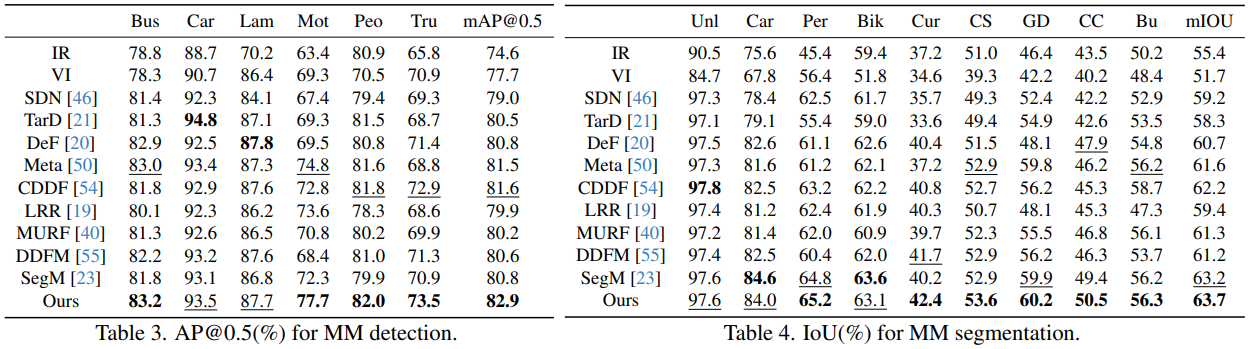

EMMA downstream object detection and semantic segmentation results
Multi-modality object detection on M3FD and semantic segmentation on MSRS.
MMOD on M3FD 82.9

mAP@0.5 with fused images.

MMSS on MSRS 63.7

mIOU with fused images.

Release

Everything needed to reproduce EMMA

Reproducible EMMA Release

We release the trained fusion checkpoint together with the pseudo-sensing checkpoints used by the self-supervised training loop. The inference path remains compact: deploy U-Fuser for fusion, and use the pseudo-sensing weights when reproducing the EMMA training protocol.

Open GitHub Model Weights
released checkpoints fusion + pseudo-sensing
Fusion Model U-Fuser weights

Released for direct image fusion inference.

Training Support Pseudo-Sensing weights

Released for reproducing EMMA self-supervision.

Fusion and Pseudo-Sensing checkpoints are open-sourced with the project release.

Citation

Reference the CVPR 2024 paper

@InProceedings{Zhao_2024_CVPR,
  author    = {Zhao, Zixiang and Bai, Haowen and Zhang, Jiangshe and Zhang, Yulun and Zhang, Kai and Xu, Shuang and Chen, Dongdong and Timofte, Radu and Van Gool, Luc},
  title     = {Equivariant Multi-Modality Image Fusion},
  booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
  month     = {June},
  year      = {2024},
  pages     = {25912-25921}
}
